MT3608 Module KiCad Custom Footprint

25 Jan, 2022

MT3608 Module KiCad Custom Footprint

MT3608 Module KiCad Custom Footprint

MT3608 Module KiCad Custom Footprint

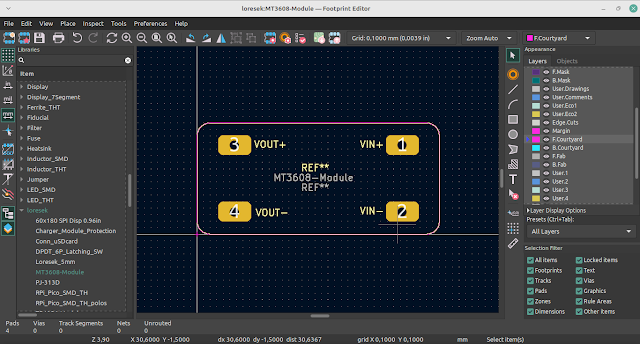

Created with KiCad 6, this MT3608 Module KiCad custom footprint would be perfectly fit in your KiCad projects.

MT3608 Module KiCad Custom Footprint

The MT3608 is a constant frequency, 6-pin SOT23 current mode step-up converter intended for small, low power applications. The MT3608 switches at 1.2MHz and allows the use of tiny, low cost capacitors and inductors 2mm or less in height.

Internal soft-start results in small inrush current and extends battery life. The MT3608 features automatic shifting to pulse frequency modulation mode at light loads. The MT3608 includes under-voltage lockout, current limiting, and thermal overload protection to prevent damage in the event of an output overload.

Technical Parameters :

• 2V to 24V Input Voltage
• Up to 28V Output Voltage
• Maximum output current: 2A
• Integrated 80mΩ Power MOSFET
• 1.2MHz Fixed Switching Frequency
• Internal 4A Switch Current Limit
• Adjustable Output Voltage
• Internal Compensation
• Automatic Pulse Frequency Modulation Mode at Light Loads
• up to 97% Efficiency
• MT3608 IC datasheet (pdf)

Mechanical Parameters :

• Product size: 36 mm * 17 mm * 14 mm

Method of operation :

Input 2~24v into IN+ and IN- pads, the potentiometer can adjust output voltage, output voltage is greater than the input voltage up to 28v. Once set the output voltage is a fixed constant irrespective of the input voltage.

Important :

- The input voltage should not exceed the maximum 24V limit
- The peak current output current is no more than 2A
- Please observe the correct polarities as marked by the pads.

Download MT3608 Module KiCad Custom Footprint

Download MT3608 Module KiCad 6 Custom Footprint via the link below:

MT3608 Module KiCad Custom Footprint
