Adafruit ADS1115/ ADS1015 KiCad Custom Footprint

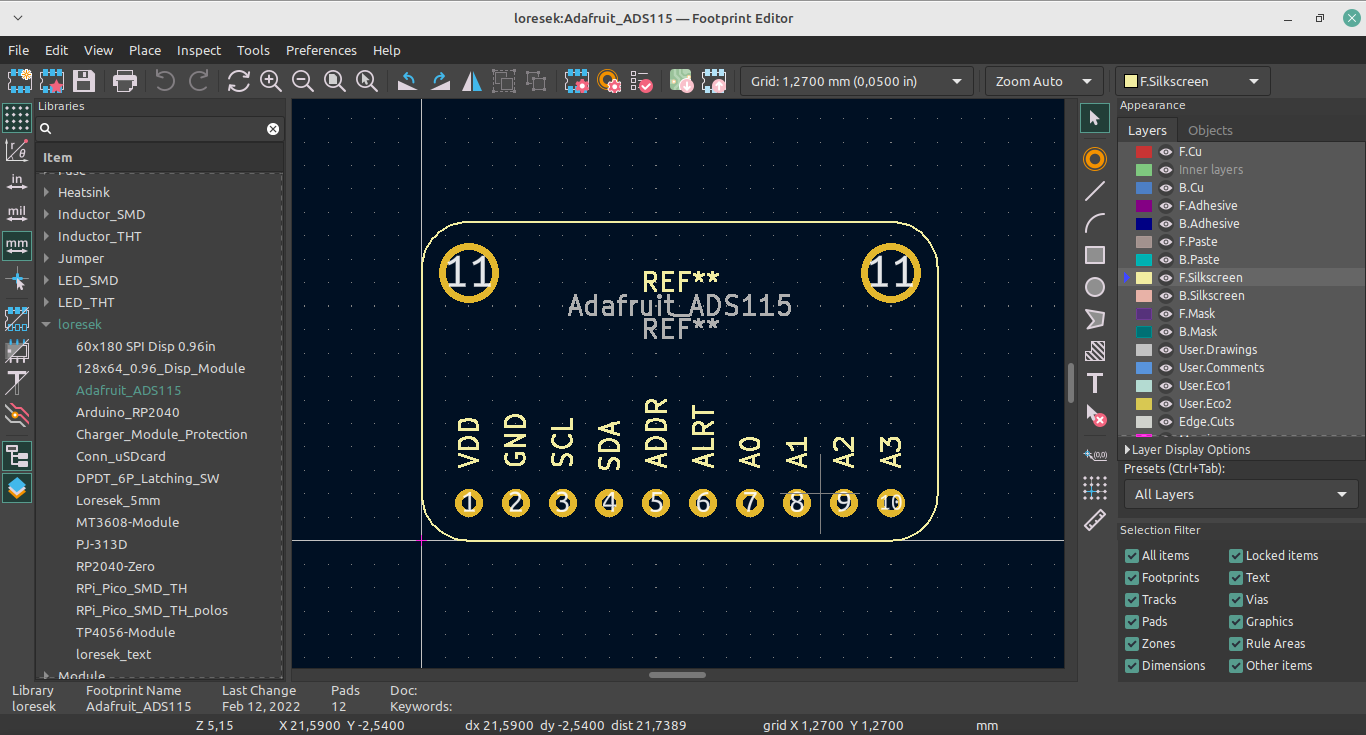

Continue to create footprints for electronic modules. This time I made a KiCad footprint for the Adafruit ADS1115 16-Bit ADC 4 Channel Programmable Gain Amplifier. This footprint can also be used for the Adafruit ADS1015 module.


Adafruit ADS1115 Description

Adafruit ADS1115
Adafruit ADS1115



For microcontrollers without an analog-to-digital converter or when you want a higher-precision ADC, the ADS1115 provides 16-bit precision at 860 samples/second over I2C. The chip can be configured as 4 single-ended input channels or two differential channels. As a nice bonus, it even includes a programmable gain amplifier, up to x16, to help boost up smaller single/differential signals to the full range. We like this ADC because it can run from 2V to 5V power/logic, can measure a large range of signals, and is super easy to use. It is a great general-purpose 16-bit converter.

The chip's fairly small so it comes on a breakout board with ferrites to keep the AVDD and AGND quiet. Interfacing is done via I2C. The address can be changed to one of four options (see the datasheet table 5) so you can have up to 4 ADS1115's connected on a single 2-wire I2C bus for 16 single-ended inputs.

To get you started, we have example code for both the Raspberry Pi (in our Adafruit Pi Python library), Arduino (in our ADS1X15 Arduino library repository), and CircuitPython. Simply connect GND to ground, VDD to your logic power supply, and SCL/SDA to your microcontroller's I2C port and run the example code to start reading data.


Download Adafruit ADS1115/ ADS1015 KiCad Custom Footprint



Download Adafruit ADS1115/ ADS1015 KiCad Custom Footprint build in KiCad 6 via the link below:









Adafruit ADS1115 KiCad Custom Footprint
