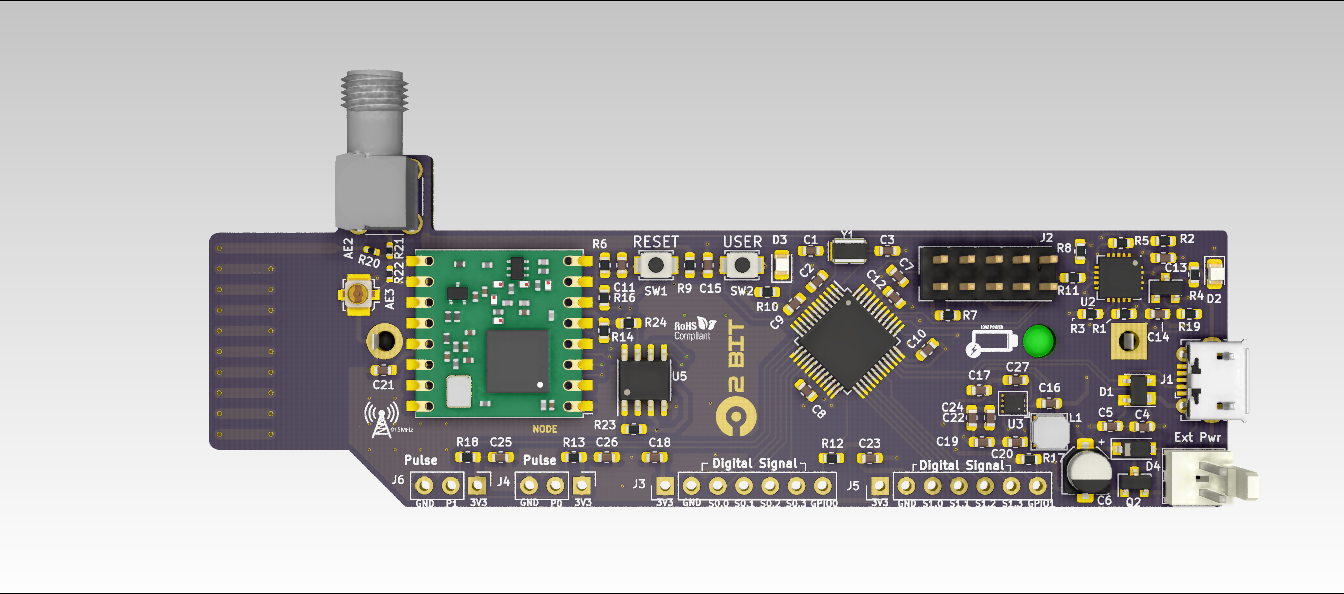

Node LoRa - Module designed as a network node for IoT applications by 2Bit
Now you can download the Node LoRa, so that you can implement it in your electronic circuits.
Module designed as a network node for IoT applications. It allows sending data over a long distance with a wide communication spectrum, high immunity to interference and minimal power consumption.
Conditions and Characteristic🔩
- MCU: ATSAMD21G18A-AUT
- Supply voltage: 2.8V to 5V
- Powered by rechargeable LiPO lithium battery
- Communication: I2C, LPUSART1, USB
- Band: AU915
- With low power consumption
- LoRA Wireless SX1276 / 78 / Rfm95 Modem
- 2 Pulse Reader
- 1 SERIAL FLASH MEMORY WITH DUAL / QUAD SPI
- 8 digital inputs
- Charge status Battery
- 1 DAC 12bits
- JTAG / SWD debugging interface
- Charge controller module
- USB input protection
- Open source Hardware / Software
- Wireless alarm and security systems
- Home and building automation
- Automatic meter reading
- Industrial monitoring and control
- Long-range irrigation systems, etc.
MCU Features
- MCU: ATSAMD21G18A-AUT
- Flash: 256KB
- SRAM: 32K x 8
- EEPROM: 6KB
- Clock speed: 48MHz
- Core processor: ARM® Cortex®-M0 +
