KiCad Color Flags - Color flags for use with global labels in KiCad schematics
When the global labels in my KiCAD schematic start to become unwieldy, I like to use these colored flags to help make them easier to find and track on a sheet. Now you can too!

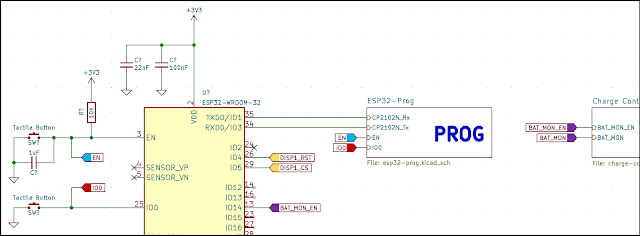

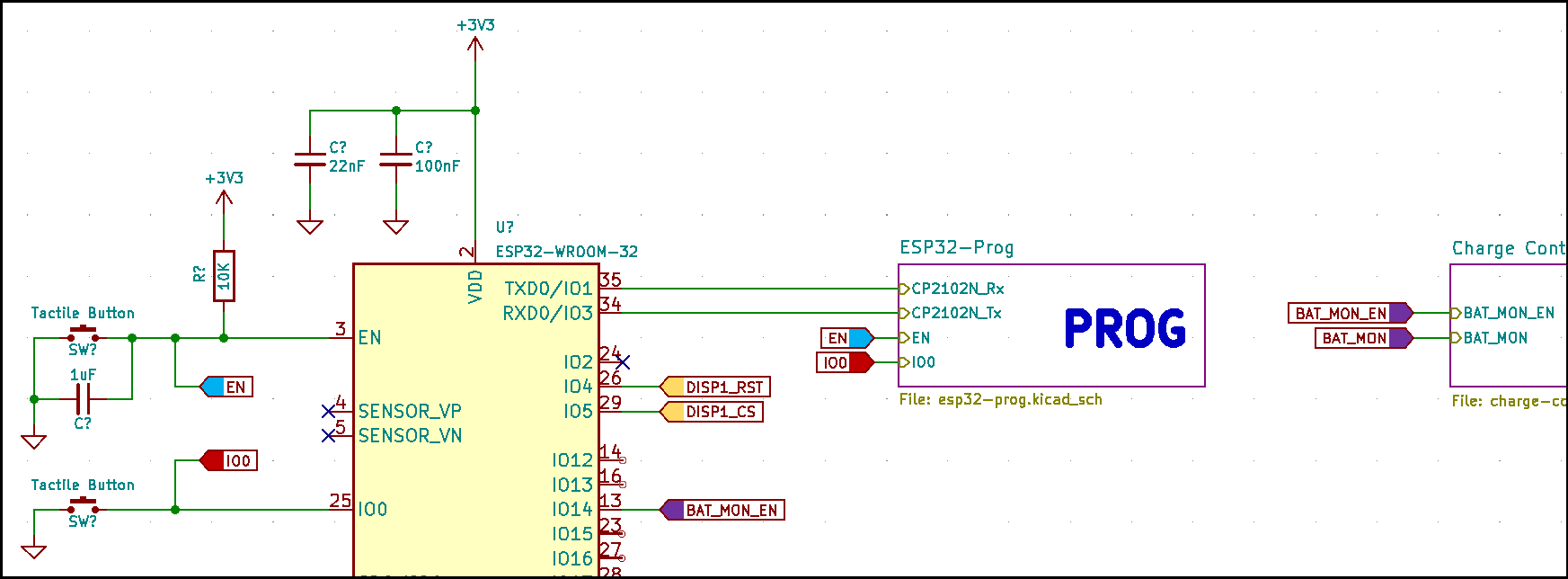

When designing schematics with complex subsystem interactions, it can be difficult to quickly identify the ends of a global label. These flags can be used to color code these labels within the KiCad schema. Available in 40 mil or 50 mil text sizes and square and pointed flags that can be used either inside or outside these labels.
Download and install KiCad Color Flags via the link below:
