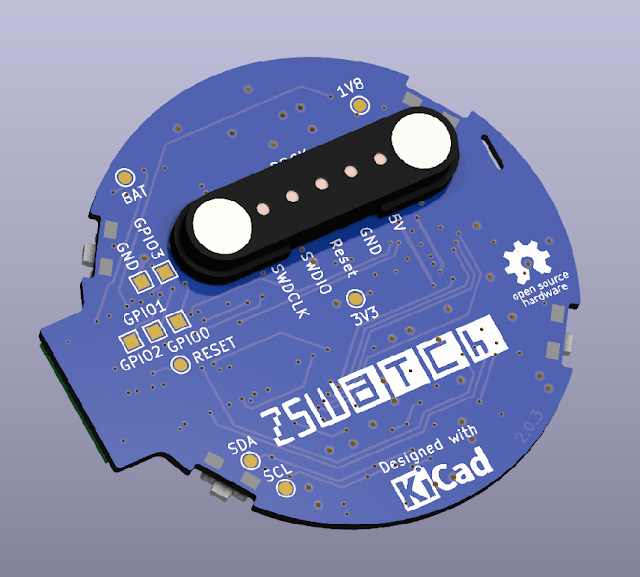

ZSWatch KiCAD Project: Revolutionizing Open Source Smartwatch Design
The ZSWatch, an open-source Zephyr™-based smartwatch, stands as an exemplary fusion of cutting-edge hardware and firmware. Developed by the skilled mind of Jakkra, this project has quickly gained traction within the tech community for its innovative features and customizable design. Offering a comprehensive hardware suite and a versatile firmware platform, the ZSWatch presents an exciting opportunity for enthusiasts and developers to delve into the realm of smartwatch technology.
A Closer Look at the Hardware Features:
nRF5340 BLE Chip (u-blox NORA-B10 Module): The heart of the ZSWatch boasts a powerful 128 MHz dual-core processor coupled with 512 KB of RAM and 1 MB of Flash memory. The 30 MHz SPI for display ensures smooth and responsive user interactions.
240x240 Round Display with Touch Screen: The inclusion of a high-resolution round display with touch screen capabilities enhances the user experience, making interactions intuitive and seamless.
IMU Bosch BMI270: Equipped with this state-of-the-art Inertial Measurement Unit, the ZSWatch opens up possibilities for gesture-based navigation and intelligent features such as arm movement-triggered display activation, setting it apart as an intelligent companion for the tech-savvy user.
Bosch BME688 Environmental Sensor with AI: Incorporating advanced environmental sensing capabilities, the ZSWatch is capable of providing insightful data on the surrounding environment, making it a handy tool for users concerned about air quality and health.
Bosch BMP581 High-Performance Pressure Sensor: With unparalleled accuracy down to the scale of approximately 20 cm, the pressure sensor further enhances the watch's capabilities, making it suitable for various applications, including altitude tracking and weather forecasting.
ST LIS2MDLTR Magnetometer: The integration of this magnetometer enhances the watch's navigation features, ensuring precise direction sensing, a valuable asset for outdoor activities and navigation.
Renesas AT25SL128A 16 MB External Flash: With expandable memory capabilities, the ZSWatch provides ample storage for data logging, application development, and firmware upgrades.
Broadcom APDS-9306-065 Light Sensor: The inclusion of this light sensor facilitates automatic brightness control, optimizing the user experience in varying lighting conditions.
The Power of Customization:
One of the most compelling aspects of the ZSWatch project is its flexibility. The option to omit certain sensors not only allows for tailored cost management but also encourages a personalized approach to hardware configuration. This adaptability empowers developers and users to create a smartwatch that caters to their specific needs, whether it be optimizing for performance, power efficiency, or specialized use cases.
Why You Should Build the ZSWatch KiCAD Project:
By offering an intricate yet user-friendly design, the ZSWatch KiCAD Project by Jakkra opens the doors to a world of endless possibilities. Whether you are a seasoned developer, an enthusiastic hobbyist, or someone with a keen interest in wearable technology, this project provides a comprehensive learning experience and a platform for exploration. Through its open-source nature, the project fosters a collaborative environment, inviting contributions and innovations from a diverse community of tech enthusiasts and professionals.
To embark on your journey with the ZSWatch, download the project from the link below. Unleash your creativity and delve into the realm of open-source smartwatch development with the ZSWatch KiCAD Project.
