KiCAD Footprint: SSD1107 I2C OLED Display Module 0.96 Inch 64x128 Pixel

24 Oct, 2022

SSD1107 I2C OLED Display Module 0.96 Inch 64x128 Pixel

Interface type: IIC interface
Pin definition: GND, V33, SCL, SDA
1:GND(OLED power supply)
2:V33 (OLED 3.3V)
3:SCL(OLED IIC Clock line)
4:SDA(OLED IIC Cable)

SSD1107 I2C OLED Display Module Schematic

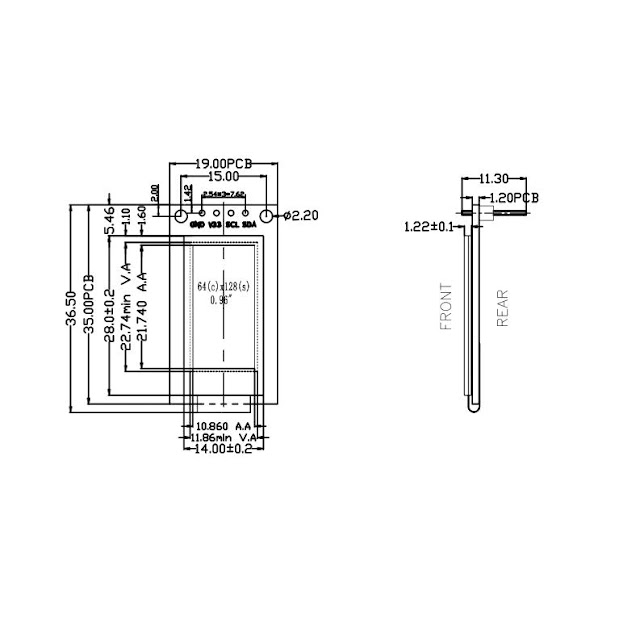

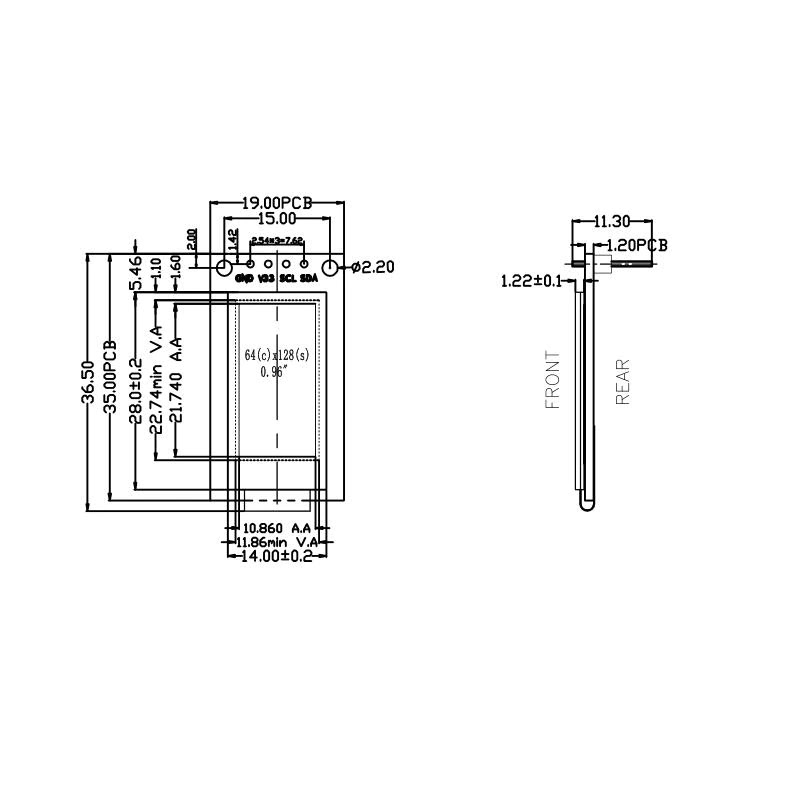

SSD1107 I2C OLED Display Module Dimension

KiCAD Footprint: SSD1107 I2C OLED Display Module 0.96 Inch 64x128 Pixel

SSD1107 I2C OLED Display Module KiCAD Footprint

Download SSD1107 I2C OLED Display Module KiCAD Footprint, below:

SSD1107 Display Module KiCAD Footprint
